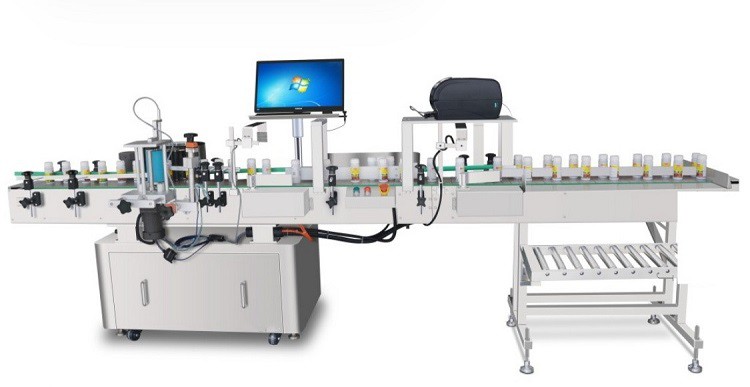

Star Wheel Round Bottle Automatic Encoding Line
Products Description
The star wheel type round bottle automatic coding line (the star wheel structure can be compatible with bottle types ranging from 100ML-1 L) can be connected to the back end of the labeling machine to collect data and automatically remove (unreadable or duplicate codes) for each bottle's QR code. After collection is completed, it automatically divides the packaging according to the packaging proportion and quantity (the number of bottles per box), and then manually boxes them.
Performance and characteristics
The camera adopts the Italian Data Lgouce DM300 model and can perform high-speed acquisition. Star wheel positioning acquisition, fast speed, high recognition rate, intelligent removal of swing rods, intelligent lane separation of swing rods, ensuring accurate removal and lane separation of 100%. Real time warning to help operators quickly troubleshoot. Remote diagnostic function ensures rapid and efficient after-sales service for the machine, ensuring worry free production.
Technical parameter
|
Category |
technical parameter |
|
Detection speed |
160bottles/min |
|
Bottle size |
100ML~1L |
|
Misdetection rate |
≤5/1000 |
|
Power supply and power |
220V 50/60HZ,1.5KW |
|
pressure |
0.4~0.6MPa |
|
External dimensions (length x width x height) |
3500x1200x1650mm |
|
Total weight |
300KG |
