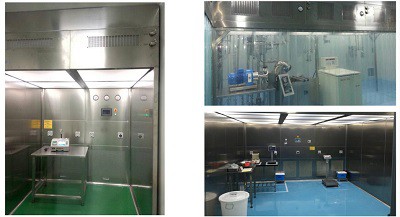

Weighing Room

Parameter type

DB-1100*550*950

DB-1100*900*2000

DB-1100*1200*2000

DB-1400*1200*2000

DB-1700*1300*2000

DB-1900*1300*2000

DB-2400*1500*2200

Outer contour dimension

(W*H*D)

1200*750*2150

1200*1200*2600

1200*1500*2600

1500*1700*2600

1800*1800*2600

2000*1800*2600

2500*2100*2600

Workspace size(W*H*D)

1100*550*950

1100*900*2000

1100*1200*2000

1400*1200*2000

1700*1300*2000

1900*1300*2000

2400*1500*2000

Cleanliness grade

IS05(Class100)/IS06(Class1000)

Primary filter

G4(90%@5μm)

Intermediate filter

F8(85%-95%@1-5μm)

HEPA filter

H14(99.995%-99.999%@0.5um)

Average flow velocity

0.45+20%m/s

Illuminance

≥300LX

Noise

≤70dB(Aweighted)

Vibration half peak value

≤ 5μm

Source

AC220V/50HzorAC380V/50Hz

Controlmethod

Superiorconfiguration and basic configuration

Material

SUS304T=1.2mm, Magnesium oxide board +rockwool fire proof board

Air exhaust

10%

The above models are all reference models, other models required bycustomer can be customized
