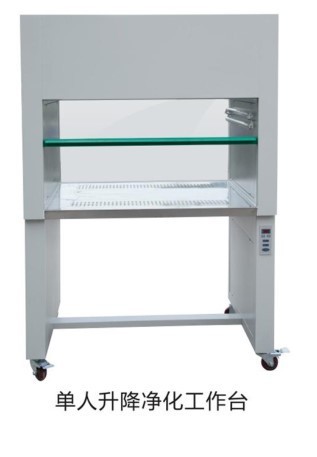

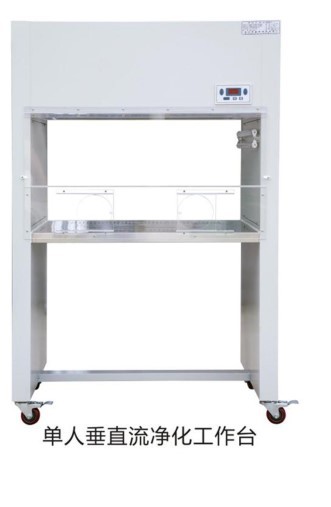

Laminar Flow Box

Model

DX-CZ-1340

DX-CZ-840

Cfu

When ≤ 0.5 dishes (medium 90 culture vessel)

Average wind speed

0.3-0.6m/s (adjustable)

noise

≤ 65dB (A-weighted)

Lighting illuminance

300LX

Vibration half peak value

Amplitude ≤ 3 μ M (x.y.Z direction)

Purification work area

1340*680*520

840*680*520

External dimensions

1500*740*1620

1000*740*1620

Sliding door method

Automatic positioning

Automatic positioning

Maximum power consumption

≤ 800W

≤ 400W

working temperature

16-33 °C

16-33℃℃

relative humidity

30-50%RH

30-50%RH

source

220V/50Hz single-phase

220V/50Hz single-phase

weight

120kg

80kg

Transport body

2.5m³

1.6m³

Fluorescent/UV lamps

30W*1/30W*1

20W*1/20W*1

Remarks

Two person, one side

Single person single-sided
