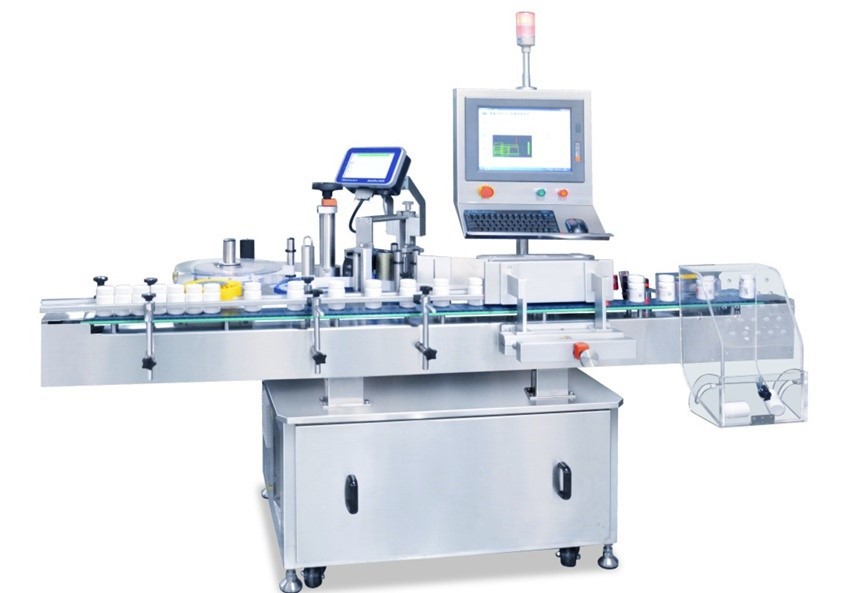

Vertical Round Bottle Labeling Machine
Products Description
For ordinary plastic circular bottles, design elements specifically tailored to the application requirements of the pharmaceutical industry have been added on the basis of the traditional roll bottle labeling method. Three phase label printing and CCD camera detection have been added, as well as missed labeling machine detection and automatic removal functions. The whole machine adopts a friendly software interface control to ensure that all production information is effectively recorded, and production information can be exported for traceability and query, perfectly connected and integrated into the production MES system.
Performance and characteristics
The whole machine adopts a WINDOWS friendly software operation interface, which can record the entire production information and export production reports. It can automatically store multiple sets of labeling parameters based on product naming. When changing the product, it can be selected and called without the need for resetting. OCCD visual inspection system, synchronously completing online coding, detection, and labeling functions. The labeling head adopts servo motor and Swiss Goldsteel sand roller technology to ensure high accuracy of labeling.
Technical parameter
|
Category |
technical parameter |
|
Labeling speed |
200 bottles/min |
|
Labeling accuracy |
±1mm |
|
Power supply and power |
220VAC 50/60HZ.1.5kw |
|
Operating ambient temperature |
0~50℃ |
|
pressure |
0.4~0.6MPa |
|
External dimensions (length x width x height) |
2200x840x1600mm |
|
Total weight |
300KG |
