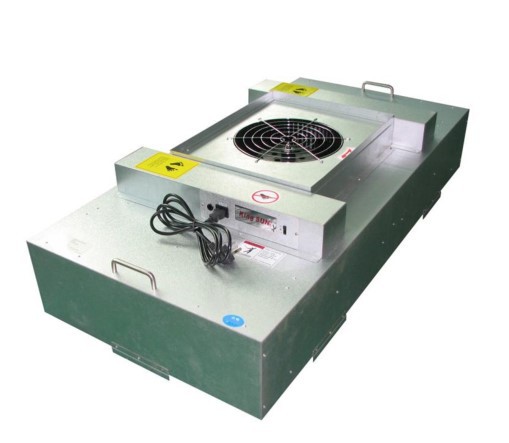

FFU Fan Filter Unit

Model

FFU-575*575

FFU-1175*575

FFU-1175*1175

Noise

55dB (A-weighted)

Filtering efficiency

H13-U16

Average surface wind speed

0.36-0.54m/s

Filter pressure loss

90-120Pa

External static pressure

50-150Pa

control mode

Gear adjustment, stepless speed regulation, group control frequency conversion adjustment

External dimensions

575*575*175

1175*575*175/190

1175*1175*230

Rated air volume

800m³/h

1200m³/h

2000m³/h

Power supply

220V/50Hz single-phase

Power consumption (KW)

110W

145W

180W

The above models are all reference models, other models required bycustomer can be customized
